Solenoid Valves — Miniature & Cryogenic

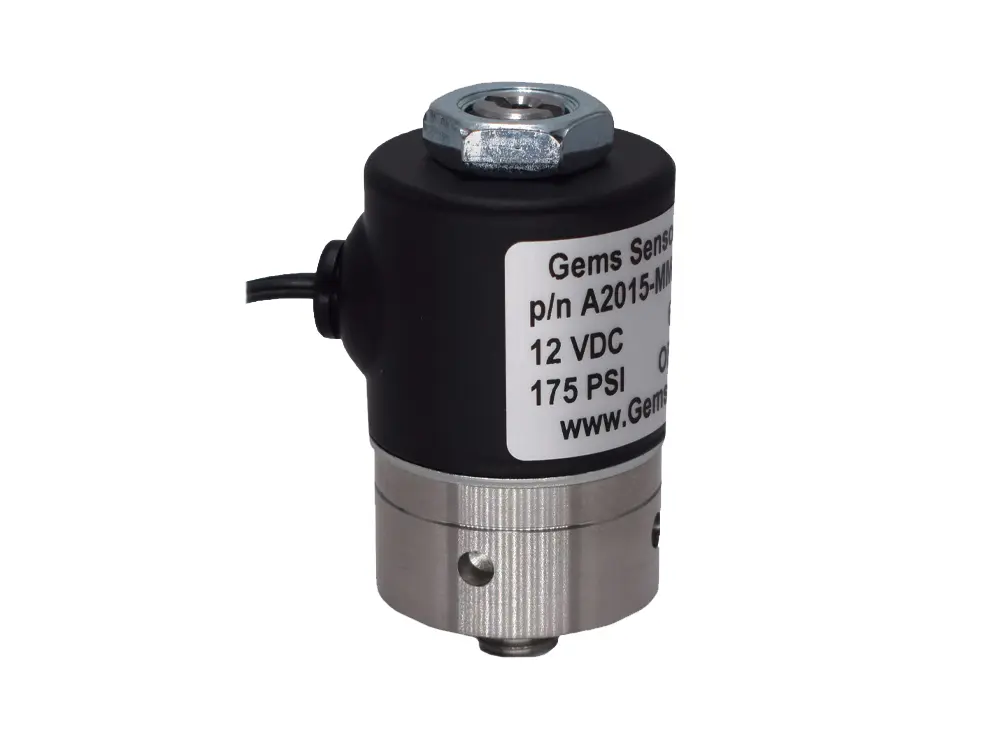

The AG Series is available in numerous port configurations, orifice sizes and material combinations making it a highly flexible miniature solenoid valve. Available in a stainless-steel body to resist corrosion for most acids, alkaline solutions and harsh environments, or in plastic when specific inert requirements are needed. Isolation (diaphragm) versions available for aggressive liquids or gases.

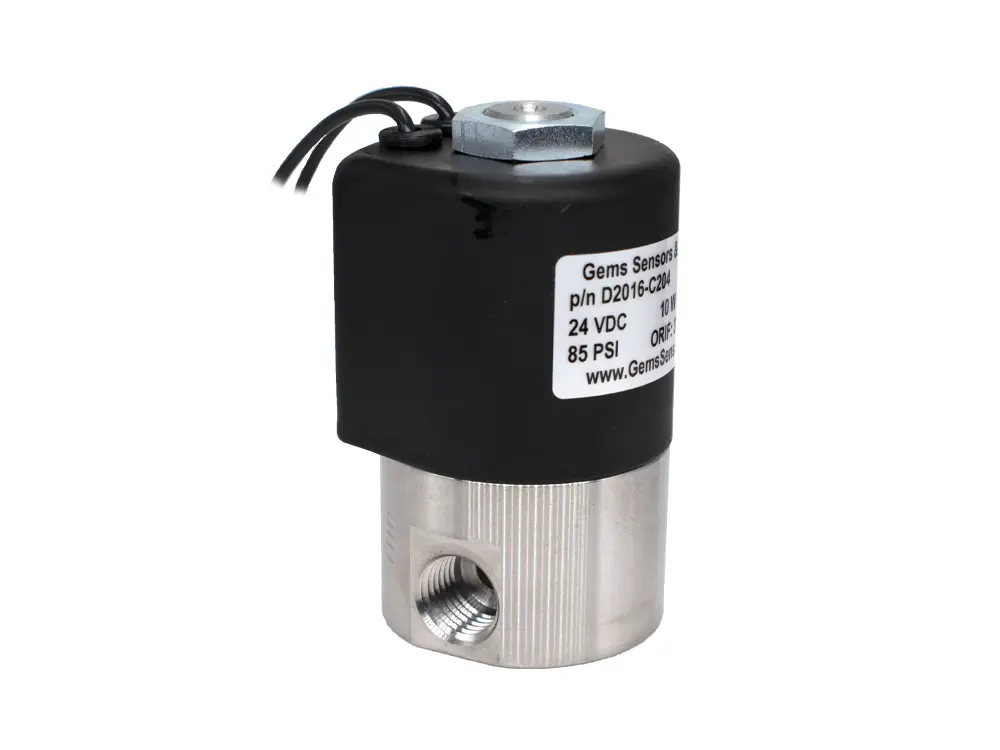

The DG Series delivers a wide range of Cv (Kv) values and maximum operating pressures, making it suitable for applications requiring higher flow rates. Available in multiple body materials, seal materials, coil constructions, voltages and wattages. 10 Watts with Cv range 0.045 to 0.400. Ideal for industrial process control, pneumatic systems and fluid handling.

The BG Series is a direct acting solenoid valve available in 2- or 3-way functionality with a bubble-tight plunger construction designed to last for millions of cycles in general purpose liquid, gas and vacuum applications. The bubble-tight seal makes it ideal for applications where zero leakage is critical, such as medical equipment, laboratory instruments and analytical systems.

The E and EH Series are 2- or 3-way sub-miniature solenoid valves delivering fast response times and high flow rates, specifically engineered for air and dry gas applications. Nickel-plated body and coil housing construction produces a highly durable, corrosion-resistant valve. The EH Series is the high-flow version. Ideal for pneumatics, gas analysis and instrumentation.

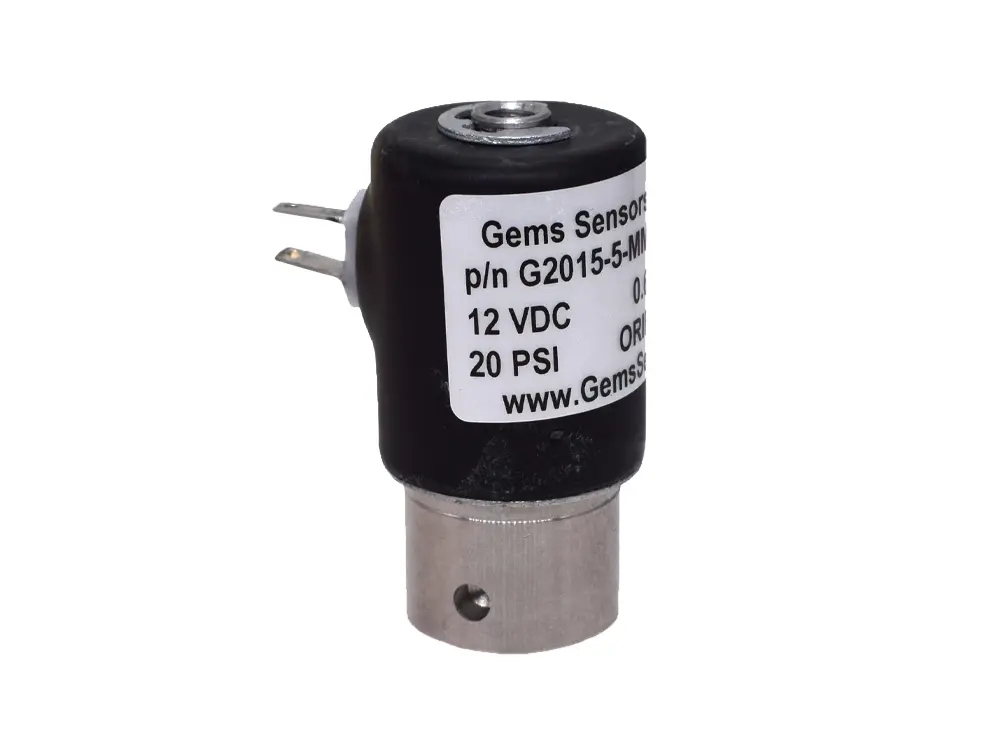

Versatile 2- or 3-way subminiature valves with stainless steel body to resist corrosion for most acids, alkaline solutions and harsh environments. Ideal for hospital and laboratory equipment, air sampling systems, water purification systems and analytical equipment where chemical resistance is essential. The GH version offers higher flow rates.

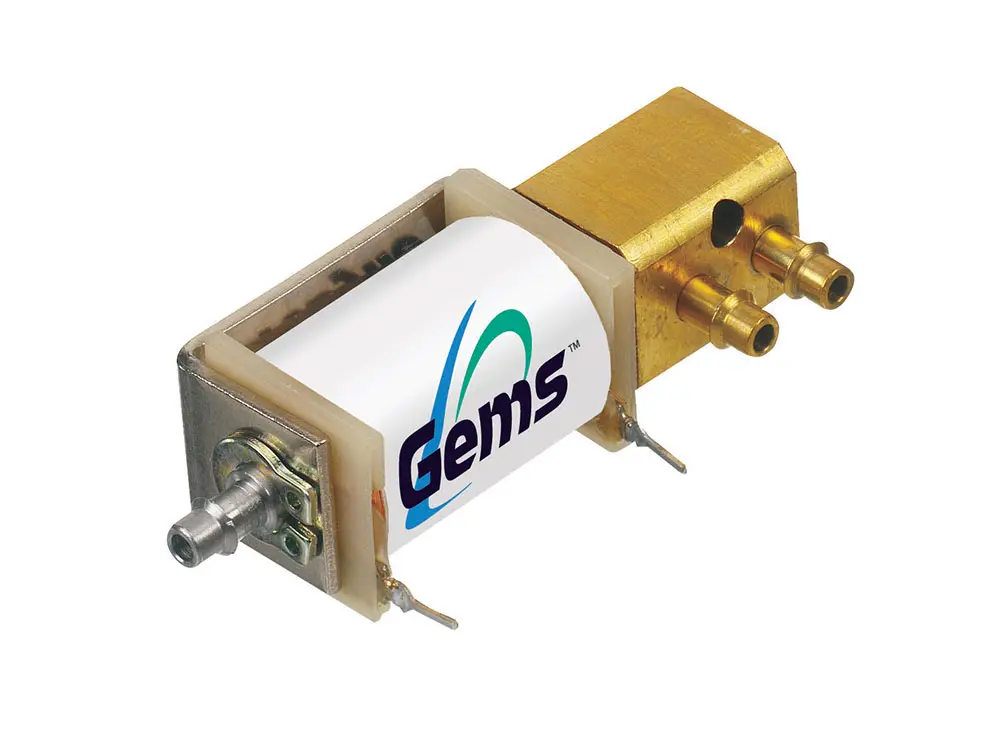

The M Series is a sub-miniature 2- or 3-way valve that implements efficient power conservation. In battery-powered applications, the M Series can be designed for extreme low-wattage conditions. Features a compact size, consistent high-speed response time and reliable operation over 200 million cycles. The ideal choice for portable, handheld and battery-operated OEM devices.

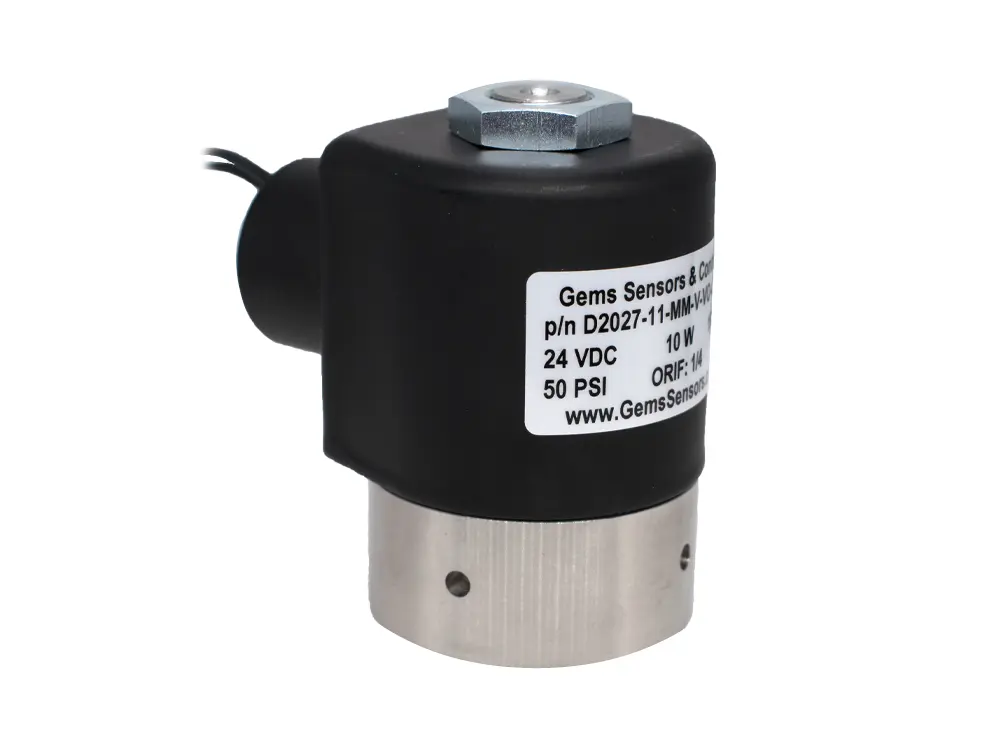

2-way, high-flow miniature cryogenic solenoid valves designed and built for service down to -196°C (-320°F). Configurable for liquid nitrogen (LN2), liquid carbon dioxide (LCO2) and other extreme-temperature media. PTFE-coated plungers, 316 stainless steel guide tubes and plunger springs, plus encapsulated coils produce a truly robust cryogenic valve for high cycle life and precise media temperature control. MOPD 1000 psi (69 bar). Cv range 0.040 to 0.770. 15 Watts.

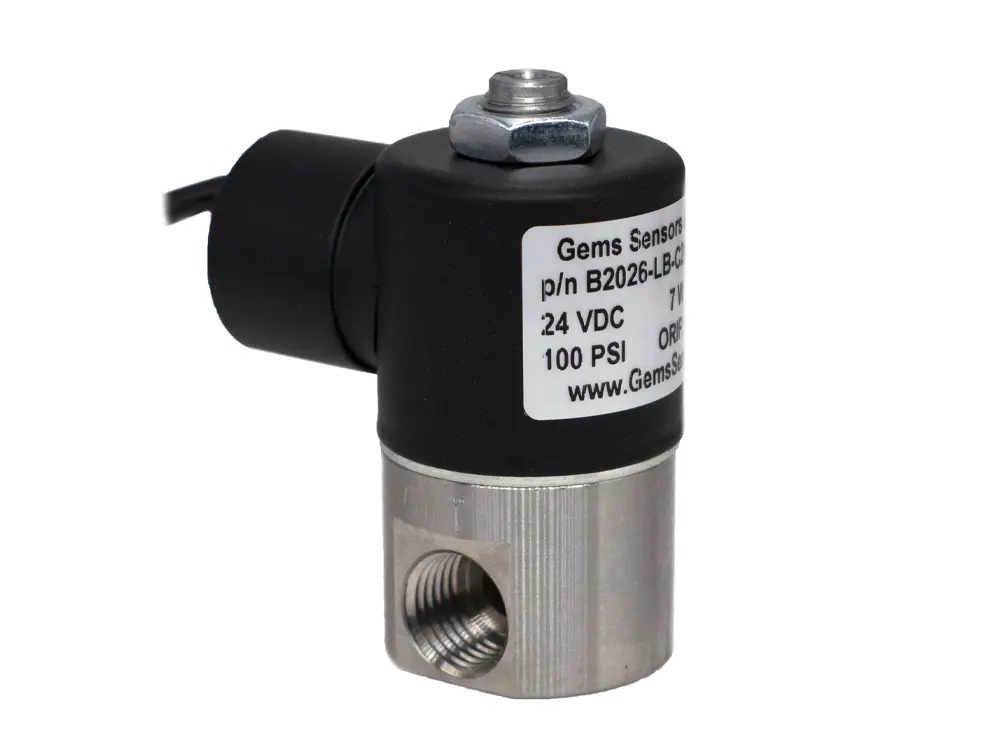

2-way miniature cryogenic solenoid valve designed and built for service down to -320°F (-196°C) in applications needing a Cv between 0.045 and 0.440. Configurable for liquid nitrogen (LN2), liquid carbon dioxide (LCO2) and other extreme-temperature media. PTFE-coated plungers, 316 stainless steel guide tubes, encapsulated coils, and PTFE or Rulon® seat seals produce a robust cryogenic valve for applications requiring high cycle life. MOPD 900 PSI. 9 Watts.
