Barksdale IIoT-Ready Sensors in Singapore

iSensors International supplies Barksdale IIoT-ready programmable sensors in Singapore and Asia. These smart sensors monitor, record and communicate pressures, temperatures and levels across a broad range of wired and wireless applications — supporting Industry 4.0 connectivity via IO-Link and HART® communication protocols.

Request a Quote All Barksdale Products

IIoT product range

  • BiT 450 Series — HART® Pressure Transmitter
  • BiT 450X Series — Explosion-proof HART® Transmitter
  • BPS3000 — Electronic Dual Pressure Switch
  • BDS3000 — Electronic Differential Pressure Switch
  • BLS3000 — Electronic Dual Level Switch

Barksdale IIoT Products

Barksdale's IIoT product line combines proven sensing technology with modern digital communication protocols, enabling smarter monitoring, predictive maintenance and seamless integration with Industry 4.0 systems.

🔗

HART® Intelligent Pressure Transmitters

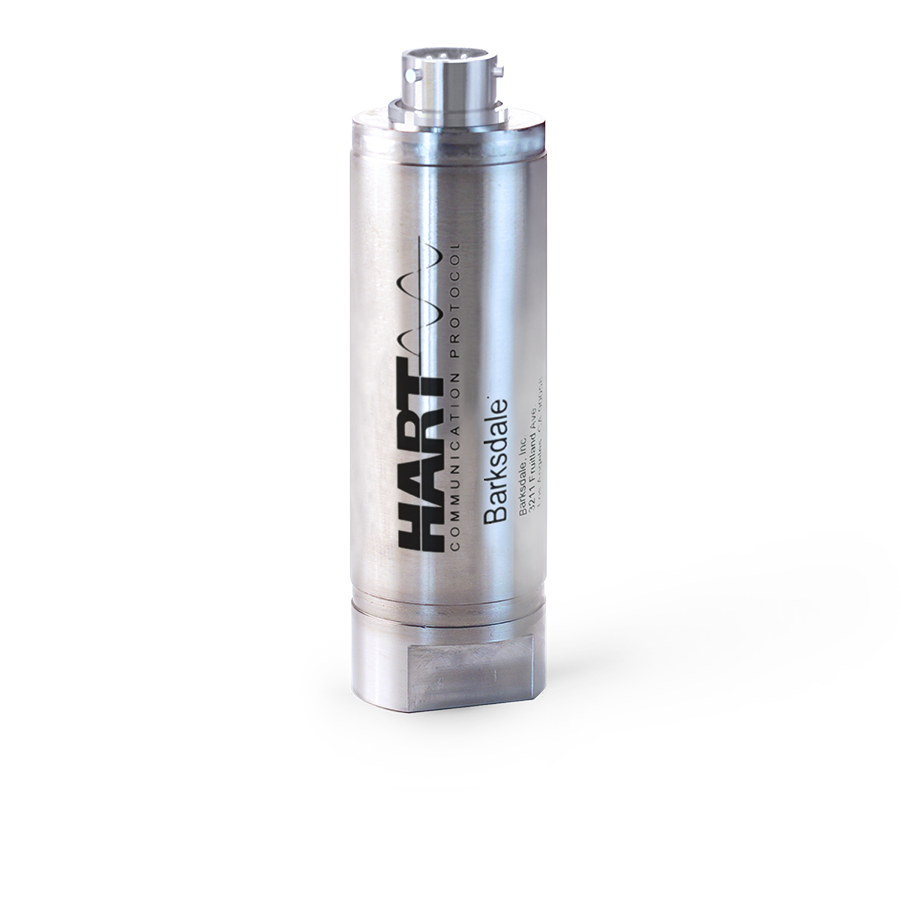

Barksdale BiT 450 Series HART Pressure Transmitter
HART® IIoT

BiT 450 Series — Intelligent Pressure Transmitter

High accuracy pressure transmitters and transducers with HART® communication protocol. Offers 24 standard ranges from vacuum to 30,000 psi. HART® enabled sensors communicate over the legacy two-wire 4-20mA analog current loops, offering smart features like transmitter diagnostics and remote configuration.

  • Pressure Range: Vacuum to 30,000 psi
  • Standard Ranges: 24 ranges available
  • Output: 4-20mA with HART®
  • Communication: HART® protocol
Enquire
Barksdale BiT 450X Explosion Proof HART Transmitter
HART® IIoT · EX

BiT 450X Series — Explosion-Proof HART® Transmitter

High pressure, explosion-proof compact transmitter with HART® communication protocol option. Designed for hazardous area installations where both IIoT connectivity and explosion protection are required. Suitable for oil & gas, chemical and petrochemical applications.

  • Housing: Explosion-proof
  • Output: 4-20mA with HART®
  • Communication: HART® protocol
  • Application: Hazardous areas
Enquire

IO-Link Smart Sensors — BPS3000 / BDS3000 / BLS3000 Series

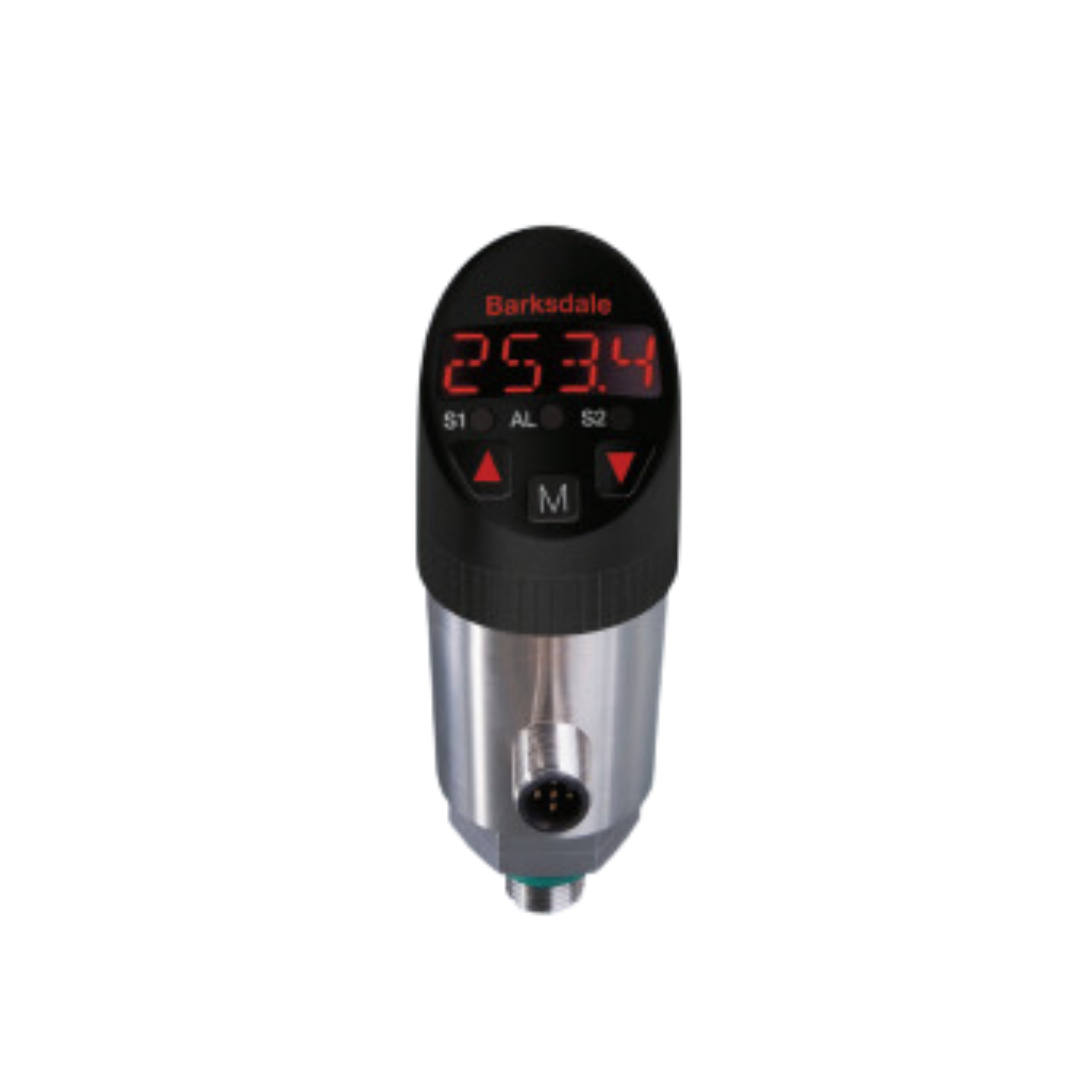

Barksdale BPS3000 Electronic Dual Pressure Switch IO-Link
IO-LINK · INDUSTRY 4.0

BPS3000 Electronic Dual Pressure Switch

Combines three discrete components — dual pressure switch, pressure transducer and digital pressure gauge — in one compact package. BPS3000 with IO-Link supports Industry 4.0 connectivity. Features a 4-digit 14-segment LED display rotatable to 320° and inversion capability for upside-down installation.

  • Pressure Range: 0-0.2 bar to 0-600 bar
  • Switch Points: Single or dual
  • Analog Output: 4-20mA or 0-10V DC
  • Digital Output: IO-Link
  • Display: 4-digit LED, 320° rotatable
  • Accuracy: 0.50%
Enquire

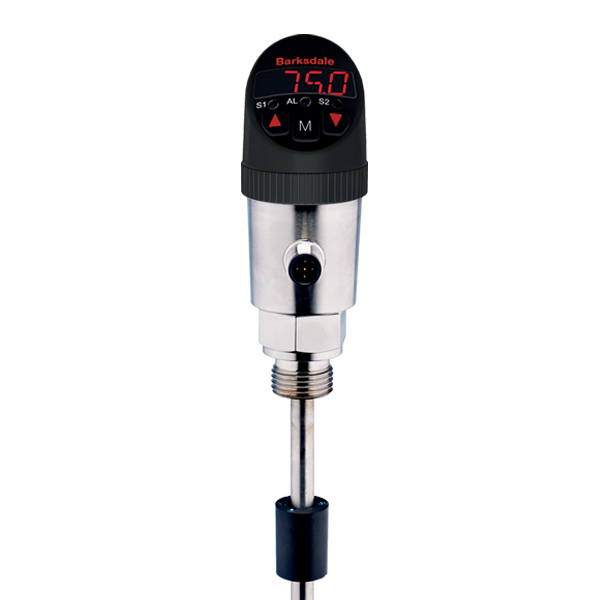

Barksdale BLS3000 Electronic Dual Level Switch IO-Link
IO-LINK · INDUSTRY 4.0

BLS3000 Electronic Dual Level Switch

Combines dual level switch, pressure transducer and digital level gauge into one compact package. Available in three configurations: dual switch points, dual switch points with analog output, or dual switch points with analog and IO-Link digital output. Features a 4-digit LED display rotatable to 320°.

  • Switch Points: Dual
  • Analog Output: Optional 4-20mA or 0-10V
  • Digital Output: IO-Link (optional)
  • Display: 4-digit LED, 320° rotatable
  • Housing: Stainless steel
Enquire

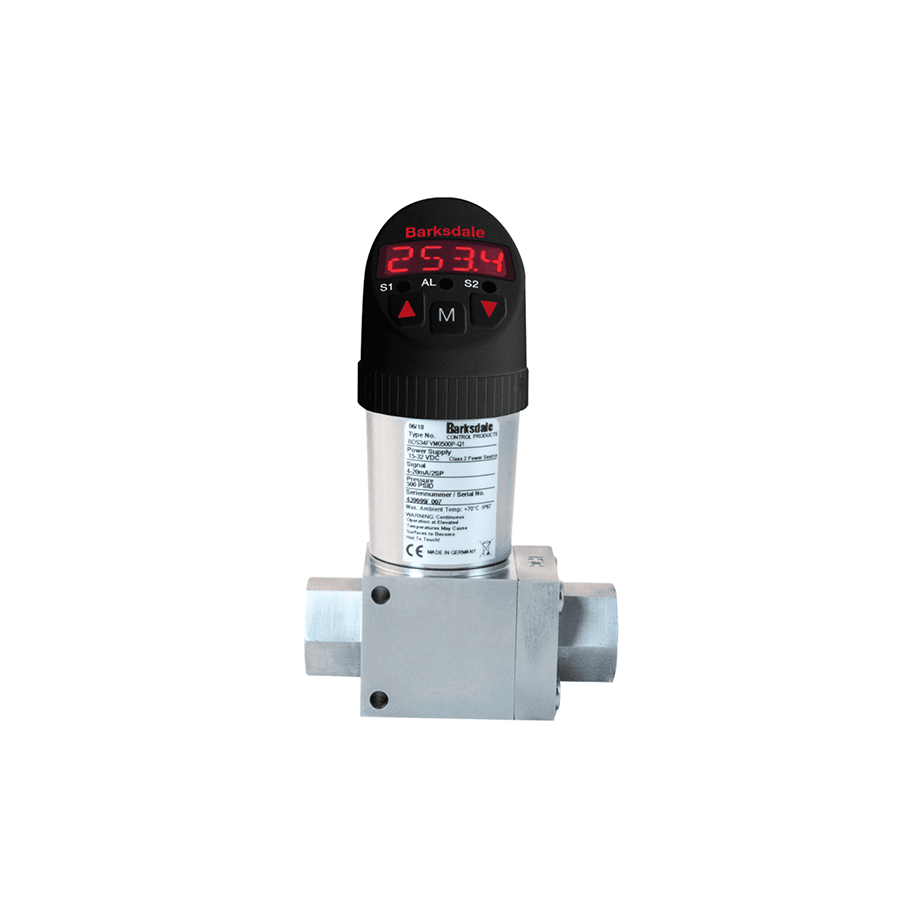

Barksdale BDS3000 Electronic Differential Pressure Switch IO-Link
IO-LINK · INDUSTRY 4.0

BDS3000 Electronic Differential Pressure Switch

Electronic differential pressure switch originally built for filtration systems, with differential pressure ranges up to 500 psid and maximum common pressure of 2,500 psi. BDS3000 with IO-Link supports Industry 4.0. IP67 rated housing, robust EMI protection and 320° rotatable display and connection.

  • Differential Range: 0-500 psid
  • Max Common Pressure: 2,500 psi
  • Analog Output: 4-20mA or 0-10V DC
  • Digital Output: IO-Link
  • Enclosure: IP65/IP67
  • Accuracy: 0.50%
Enquire

Why Choose Barksdale IIoT Sensors

Industry 4.0 Ready Barksdale IIoT sensors support IO-Link and HART® communication protocols, enabling seamless integration with modern industrial control systems, PLCs, DCS and cloud-based monitoring platforms for smart manufacturing.
3-in-1 Functionality The BPS3000, BDS3000 and BLS3000 series combine three discrete devices — switch, transducer and digital display — into one compact package, reducing installation cost and panel space while simplifying maintenance.
Remote Configuration & Diagnostics HART® communication allows remote configuration, diagnostics and calibration of transmitters without interrupting the process — reducing downtime and enabling predictive maintenance strategies.
Proven Barksdale Quality Built on Barksdale's decades of expertise in pressure, level and temperature sensing, these IIoT products deliver the same reliability and durability expected from Barksdale — now with digital intelligence added.

Typical Applications

Barksdale IIoT sensors are suited for smart factory and connected process applications across multiple industries.

Hydraulics & Pneumatics — pressure control with digital feedback and diagnostics
Filtration Systems — differential pressure monitoring across filters with IO-Link
Lubrication Systems — dual pressure switch with analog output for lube skids
Oil & Gas — HART® transmitters for smart field instrumentation
Cooling Systems — level and pressure monitoring with remote access
Smart Manufacturing — Industry 4.0 integration via IO-Link master

Enquiry

For Barksdale IIoT product selection, quotation, lead time or application support, please contact:

iSensors International

107 Gangsa Road #06-187
Singapore 670107

Tel: +65-6764 0351

Email: clkung@outlook.com

WhatsApp: +65-9674 2485

Please include product model, pressure range, media type, output requirement and communication protocol needed where possible.
