| 88 |Solid Applied Tech |

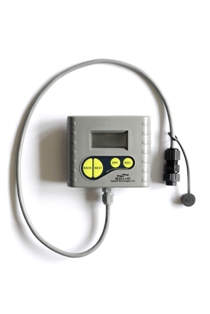

MSU MicroScan Setup Unit
MSU-1-000-C
2.3 ft cable
For Communicating with MicroScan
LCD Display (4 digits)
|
|
MSU MicroScan Setup Unit
|
| Ultrasonic Level| |
|
| 87 |Solid Applied Tech |
Ultrasonic 4-wire
Liquid Range: 0.6 to 10 meter
Accuracy: 0.25% of max range* (2.5 cm max
Transmission Frequency: 25KHz
Power Supply: 18-30VDC or 100-240VAC (option)
Output Signal: 4 - 20mA
Communication: RS-232\RS-485 (optional)
Protocol: Modbus (optional
Mounting: 1" and 2" BSP or NPT
Main Unit: -40°c to +60°c (-40°F to + 140°F). IP65 enclosure
Sensor: -40°c to +80°c (-40°F to + 194°F). IP67 enclosure
Display: LCD (6 digits)
Maximum range of control unit
(display) from sensor: 200 meters.
Relays: 2 SPDT
Sensor: 0.4 Kg , Main Unit: 1.1 kg
Enclosure: Approx 28 x 20 x 9 cm3
Approval: CE and ATEX, FM, NEPSI (optional)
|
|
Smartlite Ultrasonic Level Transmitter
|
| Ultrasonic Level|Process,Water |
|
| 86 |Solid Applied Tech |
Ultrasonic 4-wire
Liquid Range: 0.6 to 40 meter
Solid Range:0.6 to 30m
Accuracy: 0.2% of max range* (6.25 cm max
Transmission Frequency: 25KHz
Power Supply: 18-30VDC or 100-240VAC (option)
Output Signal: 4 - 20mA
Communication: RS-232\RS-485 (optional)
Protocol: Modbus (optional
Mounting: 1" BSP or 1” NPT
Main Unit: -40°c to +60°c (-40°F to + 140°F). IP65 enclosure
Sensor: -40°c to+90°c (-40°F to + 194°F). IP67 enclosure
Display: LCD (6 digits)
Maximum range of control unit
(display) from sensor: 200 meters.
Relays: 5 SPDT
Sensor: 0.4 Kg , Main Unit: 1.1 kg
Enclosure: Approx 28 x 20 x 9 cm3
Approval: CE and ATEX, FM, NEPSI (optional)
|
|
SmartScan25 Ultrasonic Transmitter
|
| Ultrasonic Level|Process,Water |
|
| 85 |Solid Applied Tech |
Ultrasonic 4-wire
Liquid Range: 0.4 to 12 meter / 39.4ft
Solid Range:0.4 to 8.5m/28ft
Accuracy: 0.2% of max range* (2.4cm max)
Transmission Frequency: 50KHz
Power Supply: 18-30VDC or 100-240VAC (option)
Output Signal: 4 - 20mA
Communication: RS-232\RS-485 (optional)
Protocol: Modbus (optional
Mounting: 1" BSP or 1” NPT
Main Unit: -40°c to +60°c (-40°F to + 140°F). IP65 enclosure
Sensor: -40°c to+90°c (-40°F to + 194°F). IP67 enclosure
Display: LCD (6 digits)
Maximum range of control unit
(display) from sensor: 200 meters.
Relays: 5 SPDT
Sensor: 0.5 Kg , Main Unit: 1.1 kg
Enclosure: Approx 28 x 20 x 9 cm3
Approval: CE and ATEX, FM, NEPSI (optional)
|
|
SmartScan50 Ultrasonic Level Transmitter
|
| Ultrasonic Level|Process,Water |
|
| 84 |Solid Applied Tech |
Ultrasonic 2-wire mono-block
Range for Liquid:
0.2 to 5 meter
Range for Solid:
0.2 to 3.5 meter
Accuracy: 0.25% of max range*
Transmission Frequency: 25KHz
Internal temperature compensation
Power Supply: 12 – 28 VDC
Output: 4 - 20mA
Mounting: 2'' BSP or 2” NPT
Operating: -40°c to +70°c (-40°F to 158°F)
Optional Integral LCD (4 digits)
weight: 0.75 Kg
Enclosure: IP65
|
|
Microscan Ultrasonic Level Transmitter
|
| Ultrasonic Level|Process,Water |
|
